Miniaturized BITS/time server solution for access layer network
Timing is the first requirement of human information interaction since ancient times. Nowadays, information technology and communication technology are constantly updated with each passing day, and the requirements for time-frequency synchronization of various systems are getting higher and higher. For example, today’s 5G communication network requires the time source, time transmission, and end device, time synchronization performance to reach 10 to 30ns. In order to cope with the deployment of future networks, our company has specially developed low cost sync master TFT1100, it can be widely distributed in access networks.

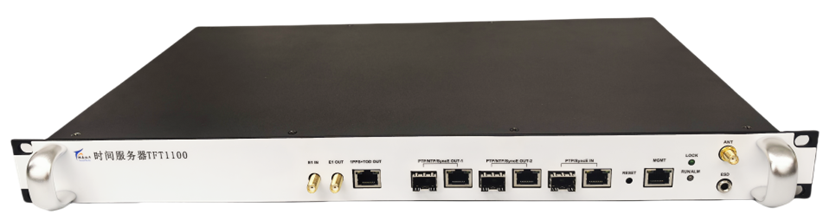

TFT1100 high-precision synchronization equipment can be widely used in communication, power, military and other systems, with time frequency tracing, local clock tame, time transmission and time frequency output functions. TFT1100 Supports configuration and maintenance-free functions, and provides a network management platform and indicator display. The timing network can be a star, chain and complex models. The equipment output performance meet 30ns accuracy, it can be widely used in telecommunications, electric power and military communication, provide a reliable and high-performance time-frequency synchronization signals.
TFT1100 time server can be used in following scenarios:
- PTP & Sync-E Timing Distribution at the edge of mobile backhaul and fronthaul Telecom networks for frequency and phase synchronization
- Synchronization delivery within buildings for indoor small cell radio base stations
- Synchronization of legacy network architectures based on NTP
- Time as a service (TaaS) into data center, financial, health and media networks
- Railway transit network synchronization
- Broadcast system, intelligent hospitals, financial system, civil aviation system, smart city synchronization
- Smart Power Grid synchronization

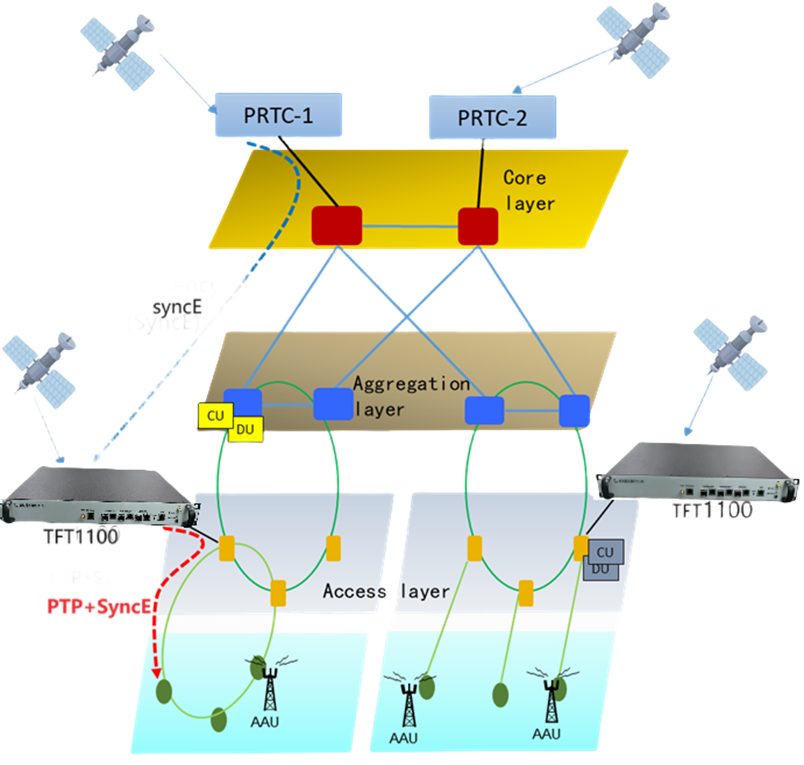

Below diagram shows TFT1100 working as small size sync master in access network:
