Taifu EMS will be provided when your Taifu time server need to be centralized management.

Following diagram show you the structure of EMS and whole DCN network.

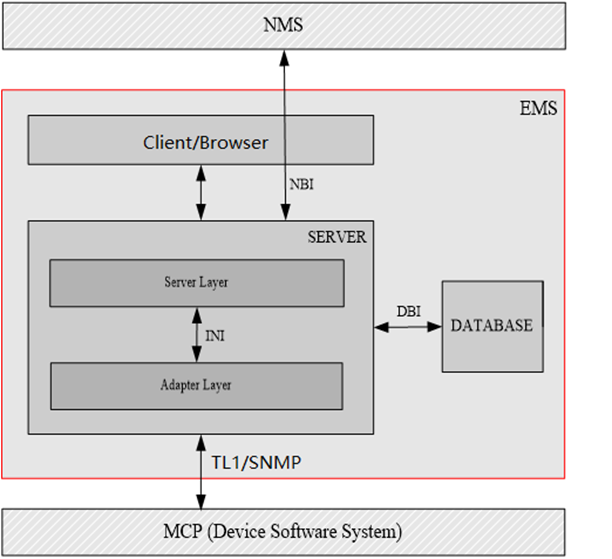

The EMS internal structure show as below:

• EMS consists of three parts: CLIENT, SERVER and DATABASE (client, server and database).
• The device supports local LCT management and centralized network management.
• The network management use C/S or B/S architecture, and TL1/SNMP protocol used.
• Support security management, configuration management, maintenance management, fault management and performance management.
• Support Corba northbound interface.
• Operating system: Windows.
• Database: Microsoft SQL Server Management capacity: 1000 clock devices

Part of the GUI:

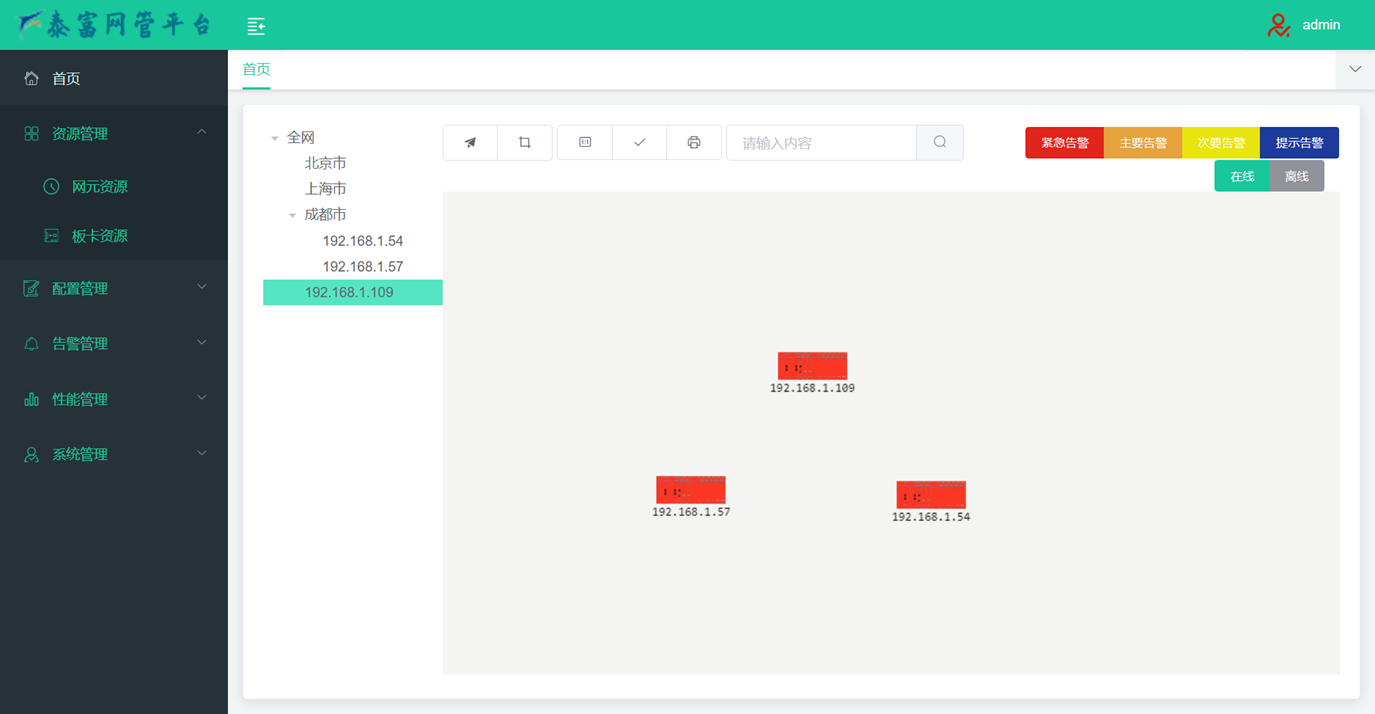

Network Structure

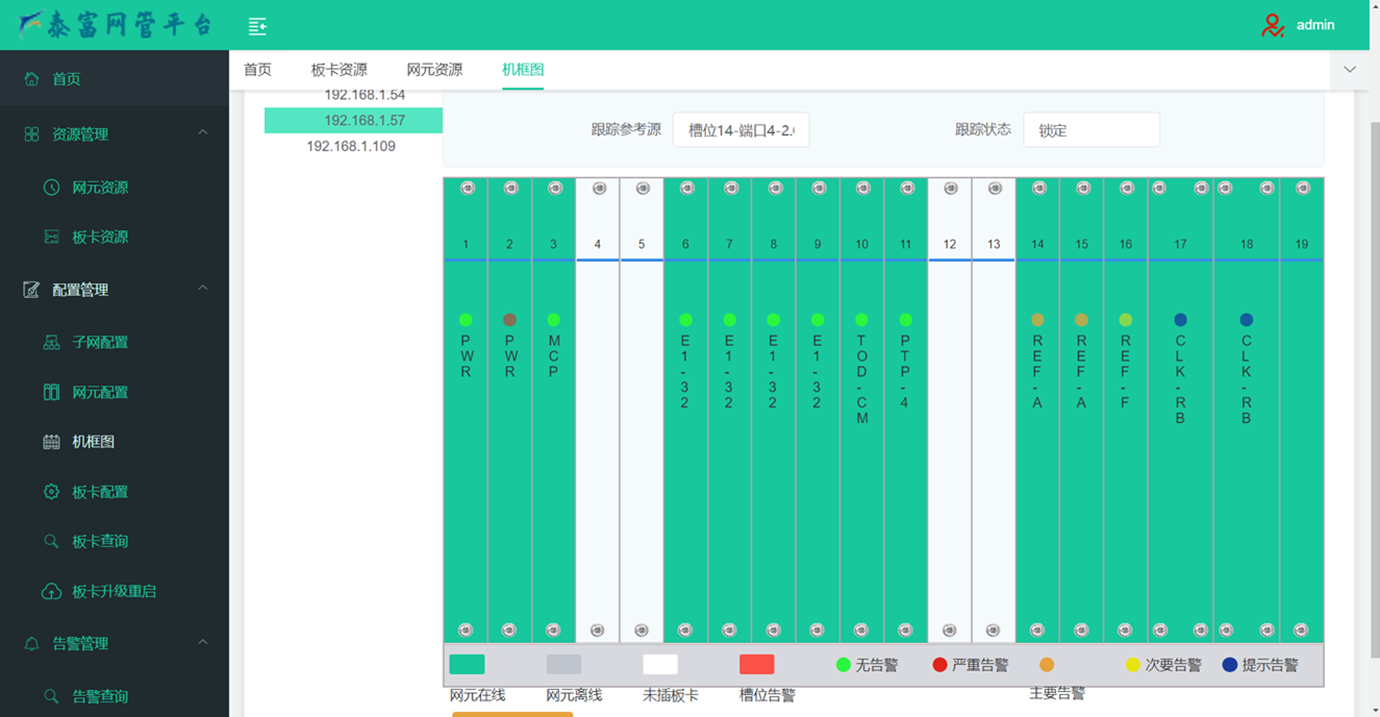

NE Configuration

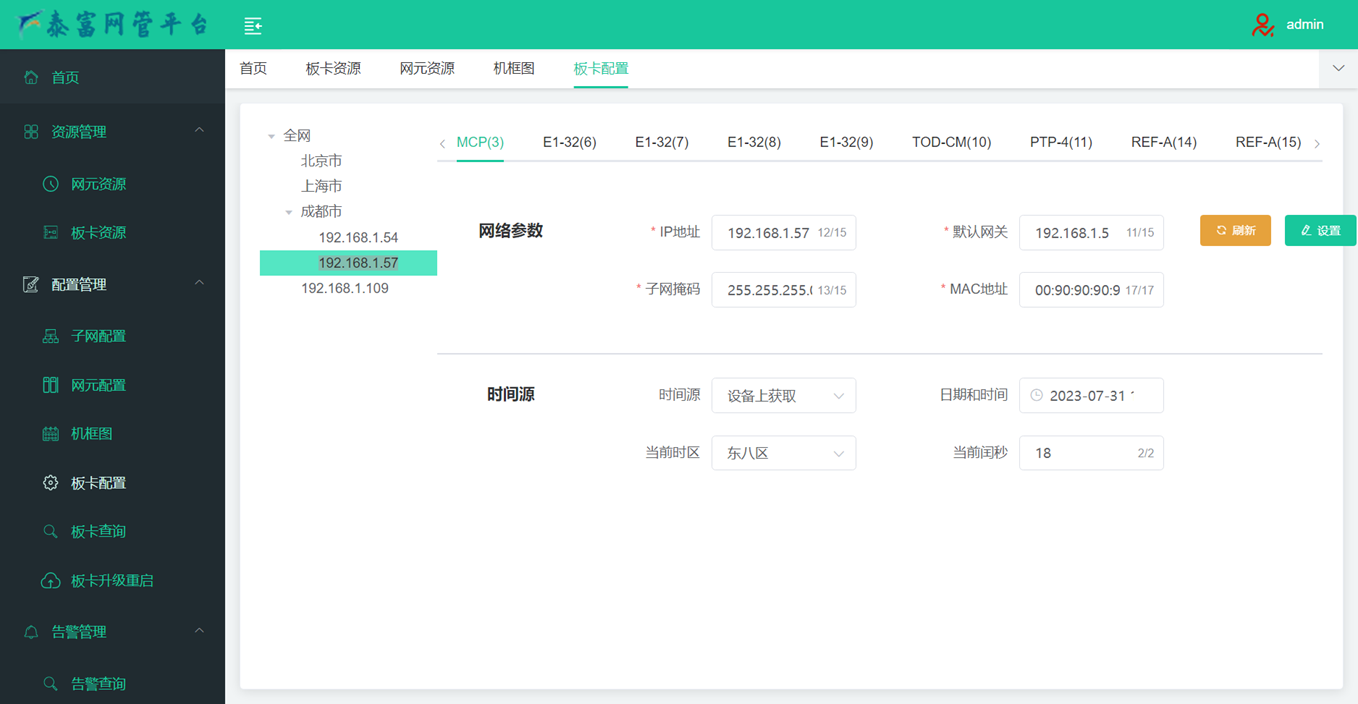

MCP Management Card Configuration

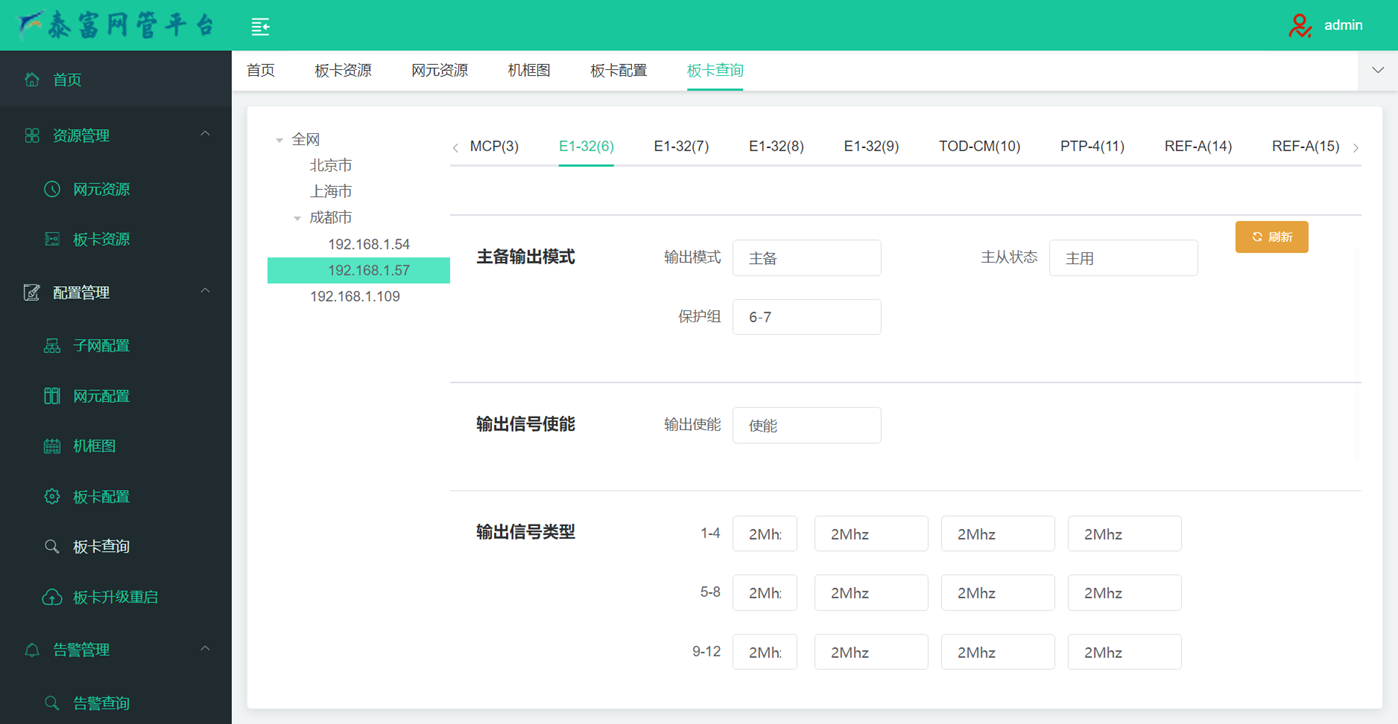

E1 Configuration

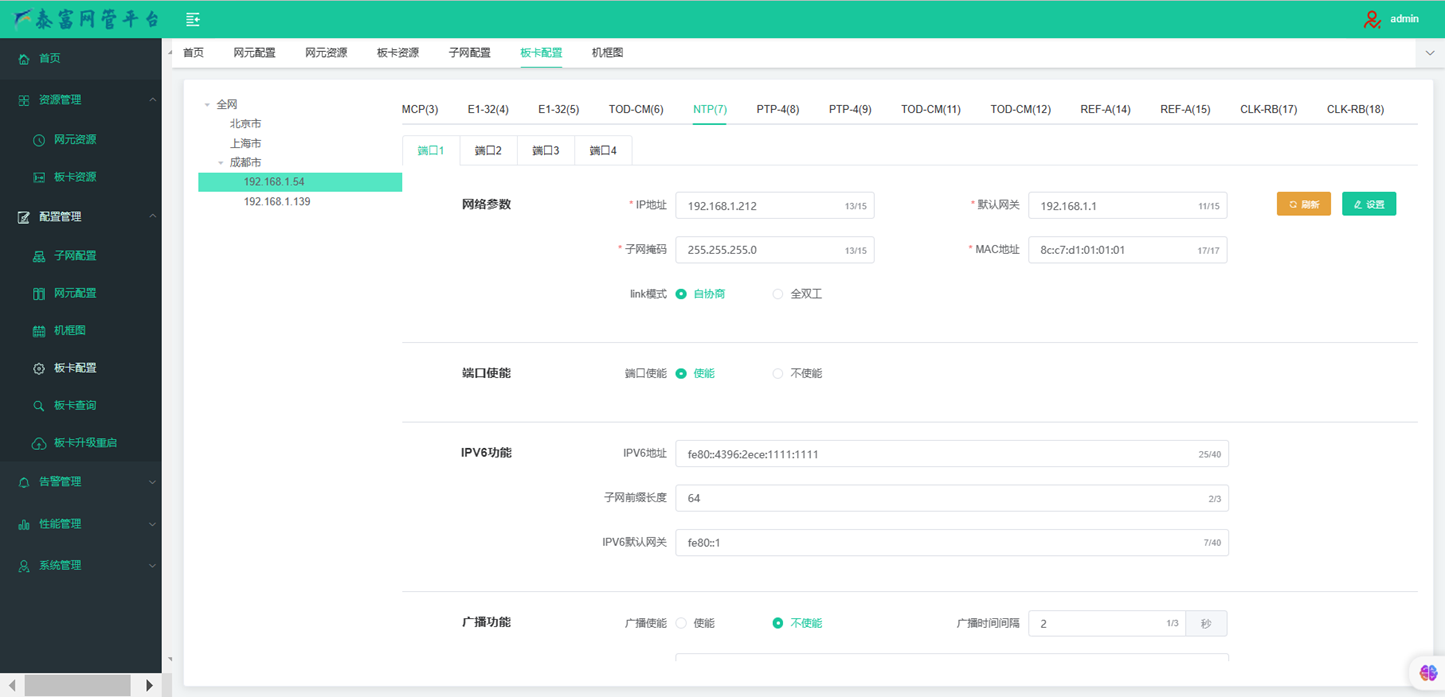

NTP Configuration

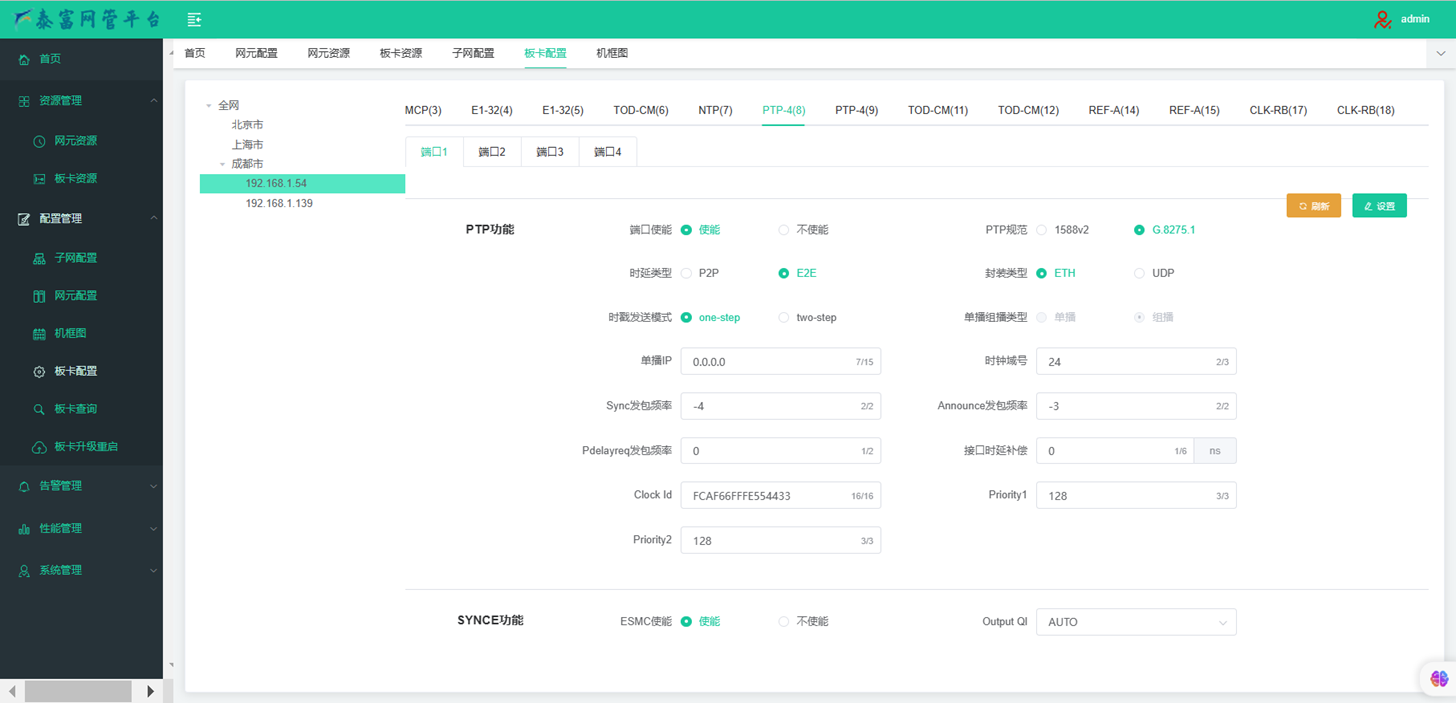

PTP Configuration

Alarm Query

If you have any questions, please feel free to consult via email or phone.
